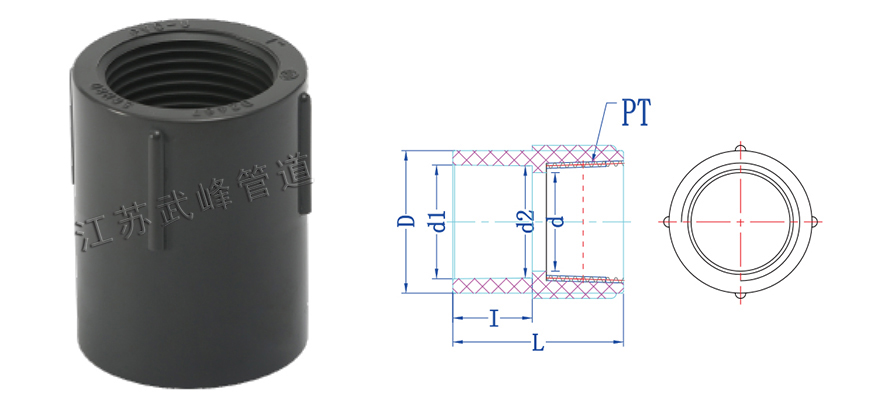

| Nominal | Outside Dia | Socket Type | Structural Diameter | ||||
| SIZE | D | d1 | d2 | I | d | L | PT（牙/寸） |
| 1/2" | 30.00 | 21.40 | 21.25 | 24.00 | 13.20 | 44.00 | 14 |
| 3/4" | 35.00 | 26.75 | 26.58 | 27.00 | 19.00 | 50.00 | 14 |
| 1" | 44.00 | 33.52 | 33.28 | 30.00 | 24.00 | 55.00 | 11.5 |
| 1-1/4" | 54.00 | 42.28 | 42.05 | 34.00 | 32.00 | 62.00 | 11.5 |
| 1-1/2" | 60.00 | 48.40 | 48.12 | 37.00 | 38.00 | 67.00 | 11.5 |
| 2" | 73.00 | 60.45 | 60.18 | 40.00 | 50.00 | 73.00 | 11.5 |
